Anti-interference
31 groups of card reader device address code setting;Different address code card without any interference between.
Penetrating
Card signal can be completely penetrate the metal car explosion-proof membrane;
The card is placed inside the car windshield before automatic induction card
Directional
Using iR directional; 433MHz ultra high frequency data transmission;
Encryption
The user can set 16777215 different combination.
By using the dynamic advanced encryption technology ;
Energy
Read card delay 3 seconds.
Parameters
Power supply:12VDC （9-15VDC）
Reading range:1-15M （can be set）
Card read Angel: <60 .
Communication interface: WG26/WG34/WG36/WG44 ; RS485
Iutput: A Group of Input
Output: A Group of Output

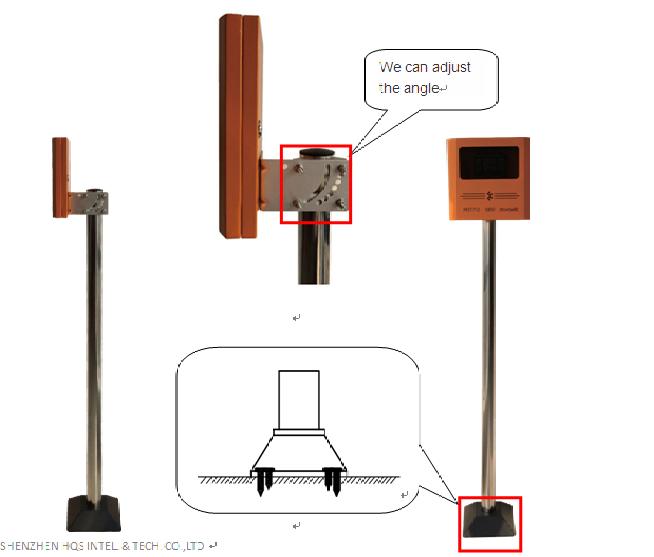

The mounting bracket is designed specifically for mounting the
iR433M Reader. The Reader could be installed on a pole or on
wood, concrete, or brick structures and aim the antenna toward
the zone of desired coverage. The Figure below shows how the
bracket looks assembled on a 50mm in OD round pole. The tool of
choice is a 3/8” (10 cm) wrench.
