H-01

2.4G Long Range Reader

Installation Guide

Version 1.0

Product features:

Using 32 high performance ARM Cortex-M3 core microcontroller tag identification speed of 2000 labels per second ( time order sent ) tag reading ability of 1000 in / sec in label buffer capacity of 1000 labels ( can prevent stress )

Using 18dBi high gain directional antenna maximum reading distance 120 meters directional ability of 30:1 with a signal attenuator card reading distance can be adjusted 1-120 meters.

Card reader technology parameters：

Processor 32 ARM Cortex-M3 microcontroller core

Ability to read the label:1000 in / sec

Buffer capacity :1000 labels (Can prevent stress )

The card reading distance and maximum 120 meters

The attenuation distance 2-120 meters can adjust ( distance error of ± 15% )

12VDC piezoelectric ( 7-12VDC )

Current≤ 100mA

Communication interface: Wiegand 26bit/34bit/36bit/44bit/RS232/RS485 (factory setting 9600 8 N 1 )

Working temperature: -40℃ ~ +85 ℃( industrial grade)

Storage temperature：-60℃ ~ +85 ℃

Work humidity:10% ~ 90%RH

Weight:2.65kg

Size:308x308x80mm

Technical parameters :

The frequency range of 2.400-2.480GHz

Gain 18dBi

Power angle: horizontal:55°/ vertical: 45°

Vertical / horizontal polarization mode in Bobbi 1.5

Before and after the ratio ≥24dB

The input impedance of 50 ohms

Lightning protection grounding

Wind resistant ability of 80m/s

Installation of LU code holding pole

The supporting rod Φ: 30- 50mm

The outer shell of ABS engineering material waterproof shell

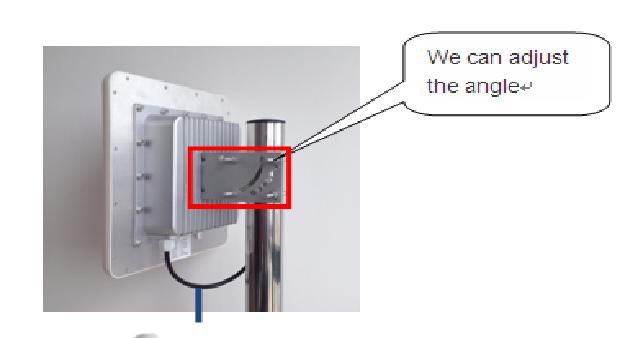

The mounting bracket is designed specifically for mounting the2.4G Long Range Reader. The Reader could be installed on a pole or on wood, concrete, or brick structures and aim the antenna toward the zone of desired coverage. The Figure below shows how the bracket looks assembled oa 50mm in OD round pole. The tool of choice is a 3/8” (10 cm) wrench.

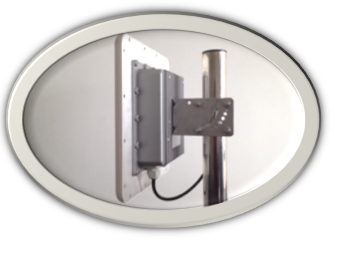

Installation diagram

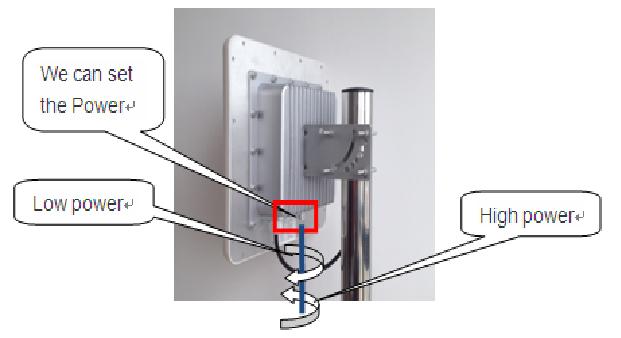

We can set the card reading distance by rotating the button.

The shortest distance is 2-3 M.

The longest distance is 120M.

Wiring:

No.	Color	Description
1	RED	12V DC
2	BLACK	GND
3	GREEN	D0(Wiegand 0)
4	WHITE	D1(Wiegand 1)
5	BROWN	TXD(RS232)
6	ORANGE	RXD(RS232)
7	BLUE	A(RS485)
8	VIOLET	B(RS485)
9	YELLOW	Trigger
10	GRAY	Beeper

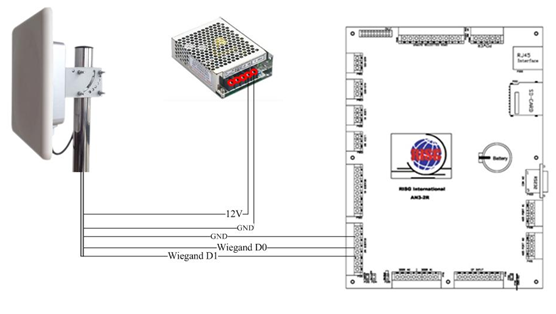

Wiegand Output

Serial Communication

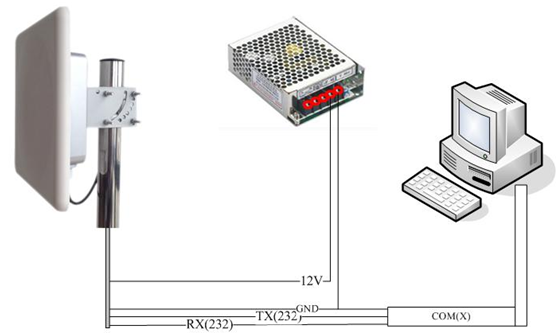

We can connect the reader and set it with the serial port.

·
