Technical parameters :
|
||||
|
ISO18000-6B，ISO18000-6C（EPC GEN2）
|
||||
|
Operating Frequency
|
ISM 902 ~ 928MHz and ISM 865 ~ 868 MHz selectable or customizable
|
|||
|
Operating Mode
|
Frequency Hopping Spread Spectrum (FHSS)
|
|||
|
Output Power
|
0~30dBm, Software controllable
|
|||
|
Read Rate
|
Software controlled, single card reading of 64-bits in less than 6ms
|
|||
|
Reading Mode
|
Automatic fixed interval or externally triggered, software define
|
|||
|
Interface Port
|
Weg26/34,RS485,RS232,one Trigger(Customizable)
|
|||
|
Reading Distance
|
> 5m
|
Reading Indication
|
Buzzer
|
|
|
Antenna
|
Internally equipped with circular polarization antenna, gain of 7dBi or 9dBi
|
|||
|
Power Supply
|
DC +9V (Power adapter included)
|
|||
|
Physical Dimension
|
7dBi
|
260×260×40(mm)
|
Package Dimension
|
405×305×105(mm)
|
|
Net Weight
|
7dBi
|
1 Kg
|
Gross Weight
|
2.5 Kg
|
|
Operating Temperature
|
-20℃~+80℃
|
|||
|

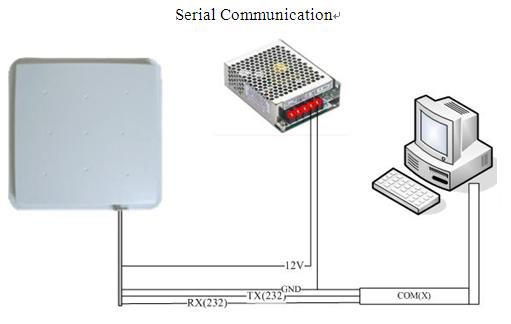

No.
|
Color
|
Description
|
|
1
|
RED
|
12V DC
|
|
2
|
BLACK
|
GND
|
|
3
|
GREEN
|
D0(Wiegand 0)
|
|
4
|
Yellow
|
D1(Wiegand 1)
|
|
5
|
Gray
|
GND(Wiegand)
|
|
6
|
BROWN
|
TXD(RS232)
|
|
7
|
White
|
RXD(RS232)
|
|
8
|
Purple
|
GND(RS232)
|
|
9
|
Blue
|
Trigger
|
